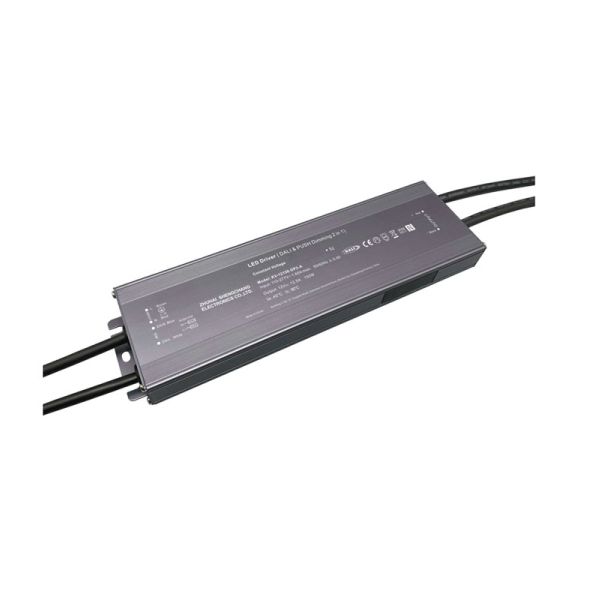

Features: Output: Constant Voltage Range: 100-277VAC PFC design: Built-in active PFC function Efficiency: up to 93.5% Protections: short circuit/ over load/ over temperature Heat dissipation: Cooling by free air convection Waterproof performance: Full protection aluminum housing, for dry, damp, wet locations; IP66 Dimming function: DALI &PUSH 2 in 1 dimming, PWM output frequency 4KHz Stroboscopic exemption Dimming range: 0-100% NFC function Fine tune the output voltage, write and read address Application: Suitable for LED lighting and moving sign applications Warranty: 5 years warranty
OUTPUT: DC Voltage 24V (24-26V adjust by NFC), Voltage Tolerance: ±5.0% Rated Current:8.33A, Rated Power:200W INPUT:Voltage Range:100-277VAC Frequency Range:47 ~ 63Hz , AC Current : 2.3A,Protection: Short Circuit:Hiccup mode, recover automatically after fault condition is removed, Over Load:≤120% ,hiccup mode, recover automatically after fault condition is removed ,Over temperature.:Ambient temp. over 55℃±10℃,output will be off; recovers automatically after temp. drops., Working TEMP.:-40～+60℃ (see below derating curve), WorkingHumidity: 20 - 90%RH non-condensing, Storage TEM.,Humidity: -40 - +80℃，10 - 95%RH, TEMP.coefficient: ±0.03%/℃（0 - 50℃）, Vibration: 10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes, Safety standards：EN61347-1 EN61347-2-13 UL8750 CAN/CSA-C22.2 No. 250.13 , Withstand voltage:I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC ( Europe ) I/P-O/P:1.80KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC ( America ), Isolation resistance: I/P-O/P：100MΩ/500VDC/25℃/70%RH, Dimension :279*78*25.1mm (L*W*H)
