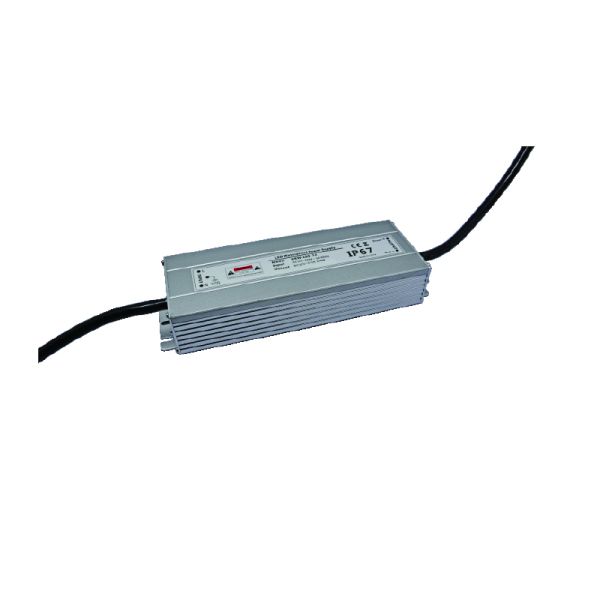

POWER SUPPLY IP67 150W 12V 100-264VAC

Be the first to review this product
€38.33
Available
Upon order
SKU
W6011001-123

Features:

  • 100~264VAC input,
  • Protection: Short circuit/overload/over voltage,
  • Miniature size and 1U low profile,
  • Working temperature with 60℃,
  • Cooling by free air convection,
  • 100% full load burn-in test,
  • IP67 waterproof,
  • 3 years warranty



Add to Wish List Add to Compare
POWER SUPPLIES / ADAPTERS,
image alt
datasheet POWER SUPPLY IP67 150W 12V 100-264VAC
image alt
Declaration of Conformity EMC_POWER SUPPLY IP67 150W 12V 100-264VAC
image alt
Declaration of Conformity RoHS_POWER SUPPLY IP67 150W 12V 100-264VAC
Details

OUTPUT: DC Voltage 12V Voltage Tolerance: ±0.5V Rated Current: 0 - 12.5ARated Power:150W Ripple & Noise:200mVp-p INPUT:Voltage Range:100-264VAC Frequency Range:50 -60HZ Power Factor:PF 0.6/220VAC（Full loading）Full Load Efficiency(Typ.):85% AC Current (Max.):1.3A Leakage current:<0.75mmA/260VAC Inrush current:<60A Protection:Short Circuit:Protection type: Hiccup mode, recovers automatically after fault condition is removed.Over Load:Hiccup mode, recovers automatically after fault condition is removed VIBRATION:10-500Hz 5G12min BURNT-IN TEST:Input voltage：220V 50Hz rated output current 25°C Bum-in 2h Dimension :207x67x37mm（LxWxH）

More Information
More Information
ColorGrey (GR)
IP ProtectionIP67 (67)
Dimensions207x67x37mm（LxWxH)
Voltage12VDC (V1)
